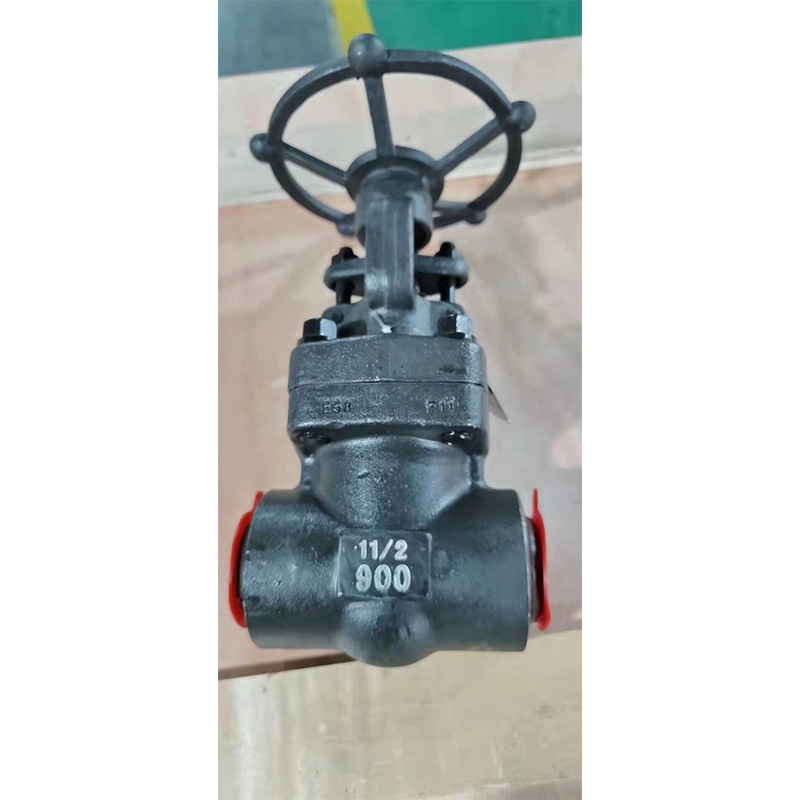

Forged Gate Valve

PRODUCT RANGE

Sizes NPS 1/2 to NPS 2  DN15-DN50

Class 150 to Class 2500  PN10-PN420

MATERIALS

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy

FEATURES

Full or Reduce Bore

SW, NPT, RF, RTJ or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet

Solid Wedge

Renewable seat rings

STANDARDS

Design & manufacture according to API 602, ASME B16.34, DIN 3353

Face-to-face according to ASME B16.10, MFR STD, EN 558, DIN 3202

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ), ASME B16.25 (BW), DIN EN 1092, DIN EN 12627, DIN EN 10241

Test & inspection according to API 598, DIN EN 12266

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
