What are the differences between Filters and Strainers?
A strainer is generally used to remove a relatively larger quantity of larger-sized particles from a flowing liquid or gas. It is typically designed to capture and remove debris such as rocks, rust scale, or other coarse contaminants. The perforated or mesh screen inside a strainer has openings that are usually measured in millimeters or fractions of an inch. Strainers are often employed as a line of defense to protect downstream equipment like pumps, meters, and control valves from damage caused by large, abrasive particulates. They are commonly used in water pipelines, fuel lines, and steam systems. Maintenance for a strainer frequently involves cleaning a reusable screen, which can often be done without removing the strainer body from the pipeline, especially in the case of a Y-type or basket strainer.
A filter, on the other hand, is designed to remove a much finer grade of particles, often in smaller quantities. Filters can capture particles measured in microns, which are substantially smaller than what a typical strainer can retain. They work by passing fluid through a porous filter media, which can be made of materials like paper, fabric, or sintered metal. This media traps fine particles, and over time, it becomes clogged and is typically replaced rather than cleaned. Filters are used in applications where fluid purity is a primary concern, such as in hydraulic systems, lubricating oil lines, potable water treatment, and chemical processing. The choice between a strainer and a filter depends on the level of protection or purification required for the system components and the process fluid.
What are the differences in quality requirements between Industrial Strainers and Filter Valves?
While both industrial strainers and filter valves are designed for particle removal, the quality requirements governing their manufacture and performance differ due to their distinct roles in a fluid system. These differences influence the materials used, the design pressure ratings, and the testing protocols they undergo. The requirements are generally guided by the consequence of failure and the specific duty each component is expected to perform.
For industrial strainers, the focus of quality requirements is often on structural integrity and durability. Since they handle larger, more abrasive particles and serve to protect critical equipment, their construction must be robust. Cast or fabricated bodies need to withstand system pressure surges and the physical impact of debris. The screens are typically made from durable materials like stainless steel and must be securely housed to prevent bypass. Testing for strainers may emphasize hydrostatic shell tests to verify pressure containment and, in some cases, checks for screen integrity. The quality standards they follow, such as those from ASME or API, often center on pressure vessel design and material specifications to prevent catastrophic failure under pressure.
Filter valves, which are designed for finer separation, have quality requirements that focus more on filtration efficiency and material compatibility. The filter media is a critical component, and its quality is defined by its micron rating and its capacity to hold contaminant without causing an excessive pressure drop. The housing must not only contain pressure but also ensure a seal around the filter element to prevent unfiltered fluid from bypassing the media. Materials are often selected for corrosion resistance and compatibility with a wider range of chemicals. Quality testing for filters frequently involves performance-based checks, such as multi-pass tests (like ISO 16889) to measure filtration efficiency and capacity. The standards applicable to filters may include strict requirements for material cleanliness, especially when used in sanitary, hydraulic, or high-purity applications.
What are three common types of Valve Filters & Strainers?
Within piping systems, several types of in-line devices integrate filtering and straining functions. These units are designed for continuous operation and ease of maintenance, each suited to particular flow conditions and space constraints. Three common types are the Y-Strainer, the Basket Strainer, and the Duplex Strainer.

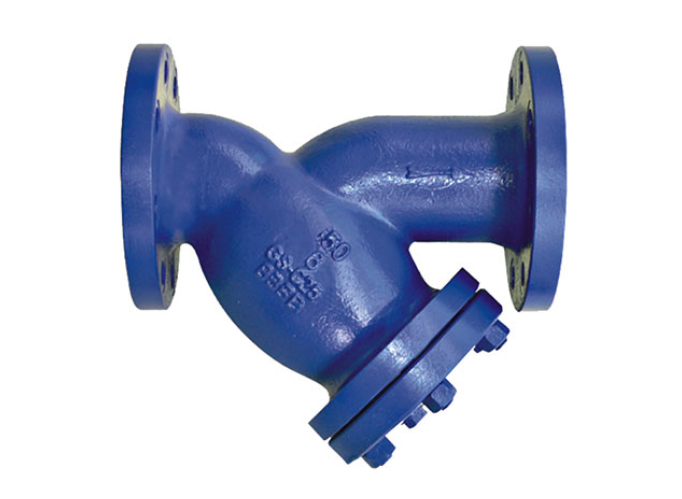

- Y-Strainer: Named for its configuration, which resembles the letter "Y," this strainer is a compact option used for removing coarse particles from liquids, gas, or steam. The fluid enters the strainer and passes through a screen housed in the angled branch, which collects debris. Y-Strainers are often used in applications with lower flow rates and where space is limited, such as in pressure reducing valve inlet lines or before instrumentation. They can be installed in either horizontal or vertical lines, with care taken to orient the debris-collecting leg correctly. Maintenance involves periodically cleaning the screen, which is accessed by removing a cover on the end of the Y-branch.

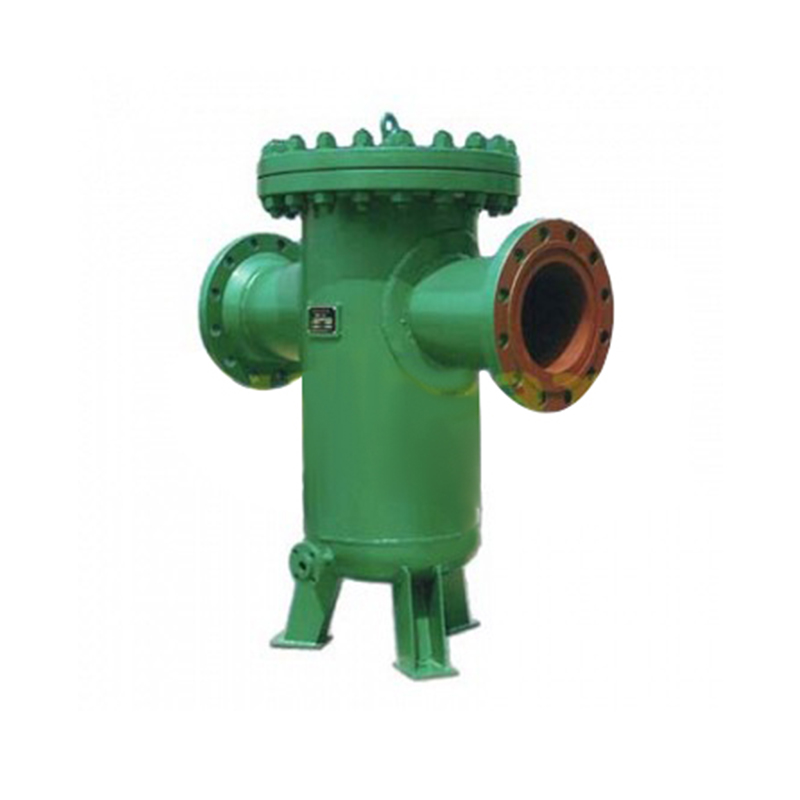

- Basket Strainer: This type features a cylindrical "basket"-shaped straining element housed in a vertical chamber. The fluid enters the strainer body, flows from the outside to the inside of the basket, and exits the outlet. The larger housing and basket surface area allow it to handle higher flow rates with a lower pressure drop than a Y-Strainer of a comparable pipe size. Basket strainers are common in suction lines of pumps to prevent cavitation and are used in fuel oil, process water, and chemical transfer lines. Maintenance requires shutting down the line and opening the cover of the strainer body to remove and clean the basket.
- Duplex Strainer: A duplex strainer consists of two separate basket strainers housed in a single body, connected by a diverting valve. This configuration allows for uninterrupted operation. While one basket is in service, the other can be isolated, cleaned, and kept on standby. By operating the diverting valve, the flow can be switched to the clean basket without stopping the process. This makes duplex strainers suitable for applications where continuous flow is necessary, and temporary shutdown for screen cleaning is not practical, such as in crude oil pipelines, fuel forwarding systems, and continuous chemical processes.
